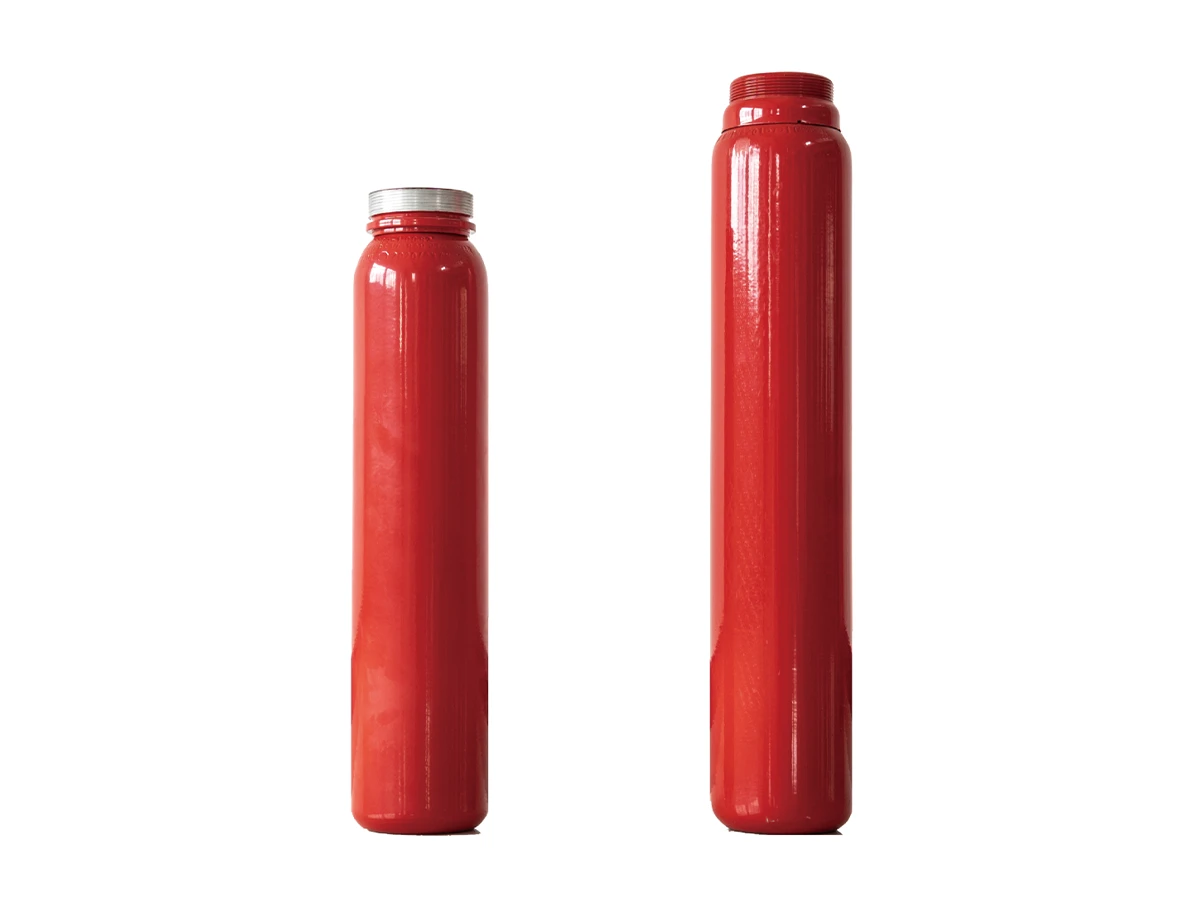

高压气体钢瓶
Every process is carefully designed and strictly controlled.
高压气体钢瓶
Every process is carefully designed and strictly controlled, from raw material screening to precision manufacturing, and finally to strict testing, ensuring that every high-pressure gas cylinder is sturdy, reliable, and has excellent performance. We continue to provide our customers with the highest quality products and services.
| 序列号 | External Diameter | Model | Height | Thickness | Empty Cylinder Weight | Material | Working Pressure | Test Pressure |
| 1 | Φ104 | 3.0L | 485(±10mm) | 2.0mm | 3.8kg | 34CrMo4 | 150bar | 250bar |
| 2 | Φ116 | 3.0L | 395(±10mm) | 2.2mm | 3.7kg | |||
| 3 | Φ116 | 4.5L | 545(±10mm) | 2.2mm | 5.0kg | |||
| 4 | Φ136 | 4.5L | 420(±10mm) | 2.6mm | 4.9kg | |||
| 5 | Φ136 | 7.5L | 655(±10mm) | 2.6mm | 7.6kg | |||
| 6 | Φ136 | 9.0L | 770(±10mm) | 2.6mm | 9.2kg | |||
| 7 | Φ154 | 7.5L | 530(±10mm) | 3.0mm | 8.3kg | |||
| 8 | Φ154 | 10.5L | 710(±10mm) | 3.0mm | 11.1kg | |||
| 9 | Φ154 | 15L | 970(±10mm) | 3.0mm | 15.1kg | |||
| 10 | Φ104.5 | 2.67L | 430(±10mm) | 2.5mm | 3.8kg | 34CrMo4 | 200bar | 315bar |
| 11 | Φ117 | 2.67L | 360(±10mm) | 2.8mm | 3.9kg | |||
| 12 | Φ117 | 4.0L | 505(±10mm) | 2.8mm | 5.1 kg | |||
| 13 | Φ137 | 5L | 465(±10mm) | 3.3mm | 6.5kg | |||
| 14 | Φ137 | 6.7L | 590(±10mm) | 3.3mm | 8.0kg | |||
| 15 | Φ137 | 8L | 685(±10mm) | 3.3mm | 9.4kg | |||
| 16 | Φ137 | 10L | 845(±10mm) | 3.3mm | 11.5kg | |||
| 17 | Φ154 | 13.5L | 880(±10mm) | 3.7mm | 14.5kg |
| Serial Number | External Diameter | Model | Height | Thickness | Empty Cylinder Weight | Material | Working Pressure | Test Pressure |
| 1 | Φ140 | 4L | 390mm | 4.5mm | 7.1kg | 37Mn | 150bar | 250bar |
| 2 | Φ140 | 5L | 465mm | 4.5mm | 8.2kg | |||
| 3 | Φ140 | 8L | 690mm | 4.5mm | 11.5kg | |||
| 4 | Φ140 | 10L | 840mm | 4.5mm | 13.6kg | |||
| 5 | Φ140 | 12L | 990mm | 4.5mm | 15.9kg | |||
| 6 | Φ140 | 15L | 1214mm | 4.5mm | 19.3kg |
